Warranty 2years 4G GPS Tracking Device Remote Monitor Voice Smart GPS Tracker

    Buy cheap Warranty 2years 4G GPS Tracking Device Remote Monitor Voice Smart GPS Tracker from wholesalers

    Buy cheap Warranty 2years 4G GPS Tracking Device Remote Monitor Voice Smart GPS Tracker from wholesalers
    • Buy cheap Warranty 2years 4G GPS Tracking Device Remote Monitor Voice Smart GPS Tracker from wholesalers
    • Buy cheap Warranty 2years 4G GPS Tracking Device Remote Monitor Voice Smart GPS Tracker from wholesalers
    • Buy cheap Warranty 2years 4G GPS Tracking Device Remote Monitor Voice Smart GPS Tracker from wholesalers

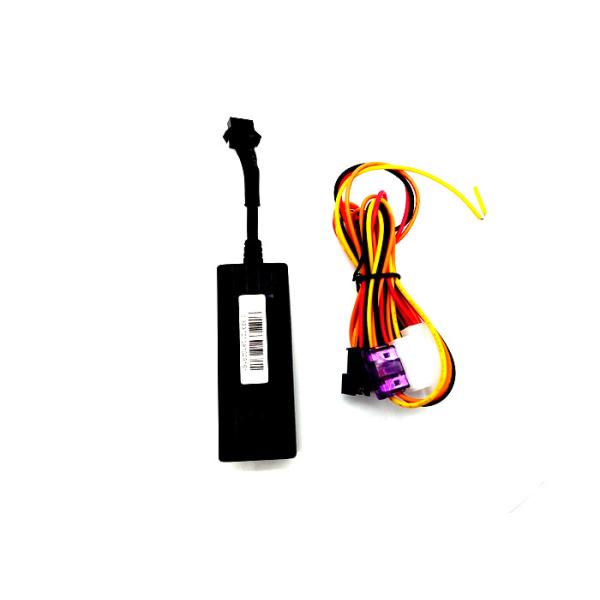

    Warranty 2years 4G GPS Tracking Device Remote Monitor Voice Smart GPS Tracker

    Ask Lasest Price
    Brand Name : Cartracker
    Model Number : C003-01-4G
    Certification : CE ISO9000
    Price : negotiation
    Payment Terms : T/T or western Union or paypal
    Supply Ability : 10,000pcs per month
    Delivery Time : 1-10 working days after received your payment
    • Product Details
    • Company Profile

    Warranty 2years 4G GPS Tracking Device Remote Monitor Voice Smart GPS Tracker

    Protocol GT06 Vehicle GPS Tracker GPRS SMS Online Tracking Moving Alarm 4G GPS Tracker

    Features

    GSM850/900/1800/1900mhz,
    WCDMA850/900/1900/2100 Mhz
    FDD-LTE 800/850/900/1800/2100/2600MHz
    Wide operating input voltage range: 9-80VDC;
    GPS / LBS real-time positioning
    support the computer to track the car
    mobile search
    vehicles
    wechat search vehicles
    Support SMS text query location information
    Built-in vibration sensor
    Able to set a specific number for SOS alarm and burglar alarm
    SOS switch button for emergency call for help;

    GSM:850/900/1800/1900 Quad band
    GPRS:Class12, TCP/IP
    Working Voltage9-100V DC
    Working current:≈22mA (12vDC)
    Working current:≈12mA (24vDC)
    GPS locating time:Cold start≈38s(Open sky)
    Warm start≈32s Hot start≈2s(Open sky)
    GPS Precision:10m(2D RM)
    Working temperature:*-20℃～+70℃
    Working humidity:20%～80%RH
    Measurement:90(L)×40(W)×15(H)mm


    Protocol GT06 Vehicle GPS Tracker GPRS SMS Online Tracking Moving Alarm 4G GPS Tracker

    Functions:

    GPSfunctions:
    protocol: GT061)support ACC ignition checking
    G-sensor : BS250E2)support Relay for cutting off power/fuel
    input power: 9-100V3)built-in GPS antenna: 18*18*4 mm
    power IC: SL3036H4)built-in battery, Real time tracking
    GSM module: MT62615)Geo-fence, over speed alarm,
    GPS module: Ublox6) platform /APP supported


    Product Specification

    FrequencyNorth America EC25-A
    EC25-V:LTE FDD: B2/B4/B12
    WCDMA: B2/B4/B5
    LTE FDD: B4/B13
    Nerworks4G/3G/2G
    Battery200mah
    Operating Voltage9-100v
    Location timeHot start≈2s(Open sky)
    Location accuracy5-10M
    Operating temperature-20℃～+70℃
    Dimension90*40*15mm
    Weight0.05kg



    Protocol GT06 Vehicle GPS Tracker GPRS SMS Online Tracking Moving Alarm 4G GPS Tracker
    Produce Description

    GSMGPRS
    Geo-sensorInput power
    ACCIgnition checking
    Built-in batteryCutt off power/fuel
    Real time trackingOver speed alarm
    Relay supportedPlatform /APP supported



    Preparation for the installation

    1 . Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer.
    2 . Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference.
    3 . SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder.
    4 . Put back the front cover and screw it up.
    5 . Connect the device to the 9-100Vpower supply.(the red LED constant glow)
    6 . Install the device in the hidden place of the car；




    Protocol GT06 Vehicle GPS Tracker GPRS SMS Online Tracking Moving Alarm 4G GPS Tracker

    Installation for the Car/Motorcycle/E-bike
    The GPS tracker must be installed under professional personnel.
    Note:
    1) Please install the device in the hidden place as followings:
    2) Avoid being placed with signal radiators like reverse sensor ；
    3) The device has GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without metal cover.
    Note:The metal cover will lessen the receiving of GPS signals.


    Device wiring requirements

    1 The device power supply is DC 9-100V. The red line is positive pole while the black line is negative pole.

    2 The negative pole of power supply connects with ground or the metals. Please do not connect with other ground lines.
    3 When finishing the po    wer supply wire connection, please make the plug of power supply to the device

    Contactor Details:

    whatsapp: +86-13717161241
    Wechat:+86-13717161241
    website:www.gpstrackerlocator.com
